SD-Link ATR833-A (Angled)

Description

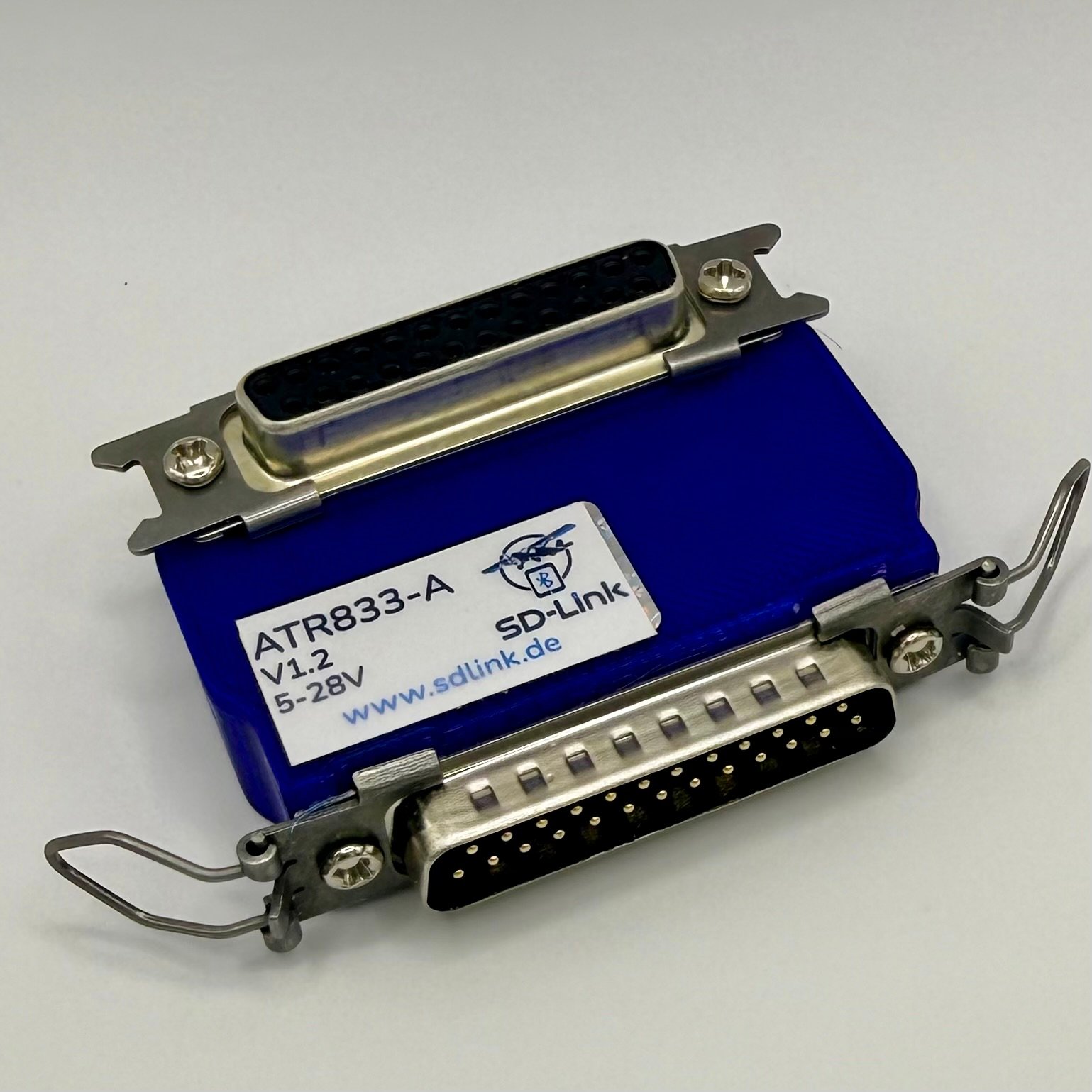

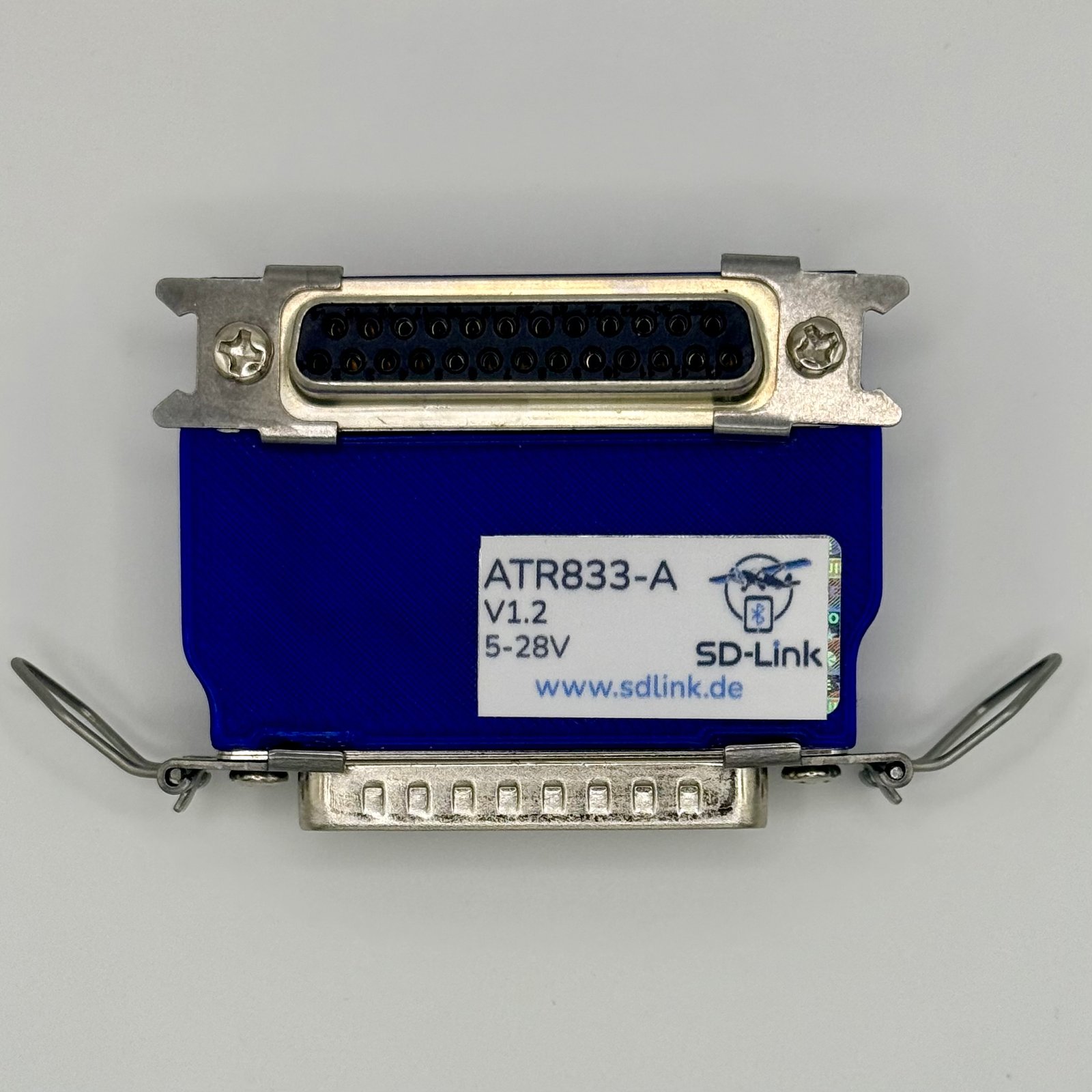

SD-Link funke ATR833 Bluetooth adapter for SkyDemon (Angled)

This angled version The SD-ATR833-E Bluetooth adapter was specially designed for installations with limited space developed behind the radio.

This adapter acts as adapter and is simply plugged between the radio and the Sub-D connector – without additional cabling or mechanical adjustmentsYou can then set the standby and active frequencies of your radio directly from the SkyDemon app via Bluetooth Low Energy (BLE).

In addition, the adapter offers Pin 9 of the outgoing connector a V24 data interface (Multi-Drop) for connecting additional devices. This allows you to PnP solution For example, integrate autopilots or AV-30 displays – an optional extension for technology enthusiasts.

💡 To your inspiration! In our customer gallery Pilots share their installations with pictures and videos.

Please note!

The orientation of the connector varies depending on the radio model. Therefore, please pay attention to the direction in which the adapter should be angled. For this reason, we offer the product variants "LEFT" and "RIGHT"
A summary table For orientation, see the Image gallery of the product.
If you have any questions about the variant selection, we will be happy to help you via E-mail to info@sdlink.de continue.

Key Features:

• Compatibility: Designed for the Funke ATR833 VHF transceiver. Compatible with the ATR833-S, ATR833-A, and ATR833-II OLED. Works with SkyDemon on Android and iOS.
  Please note: The adapter is only with radios from software version SW 5.8 Older versions (SW 5.7 and lower) are unsupported.
  You can tell whether your device was already delivered with SW 5.8 by the Serial number – the first supported unit carries the S-No. 40131610 (Production year 2010).
  💡 Tip: The last two digits of the serial number indicate the year of manufacture. Devices with lower serial numbers may require a software update from the manufacturer.
• Simple installation: The adapter is simply plugged between the existing wiring and holds securely to the housing thanks to the Molex Latch system.
• Space-saving design: Optionally angled upwards (UP) or downwards (DOWN) to offer optimal installation options.
• Power supply:  No additional power supply, handles board voltages up to 28 V. An integrated fuse provides additional protection – the radio remains operational.
• Requirements: Works with radios on the 12 V and 24 V avionics bus.
• No additional mechanical work required: Just plug it in and get started.
• Compact design: Dimensions (46 x 61 x 17) mm, weight: 60 g.
• Comprehensive instructions: A detailed installation and configuration guide for SkyDemon and Sky Map is included in the delivery and is also available under Instructions & data sheets available.

Important note: This product is intended for experimental purposes only.
