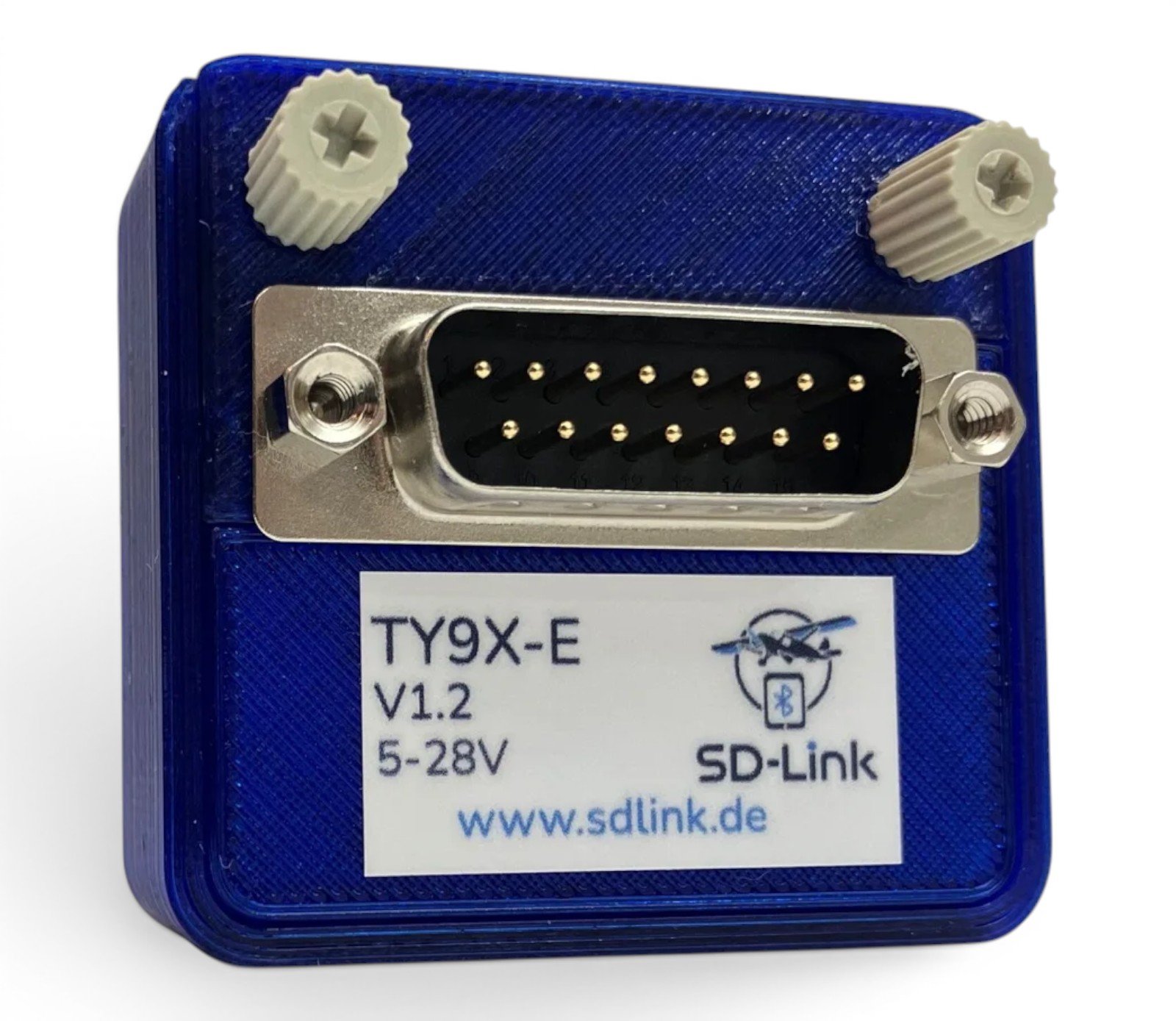

SD-Link TY9X-E

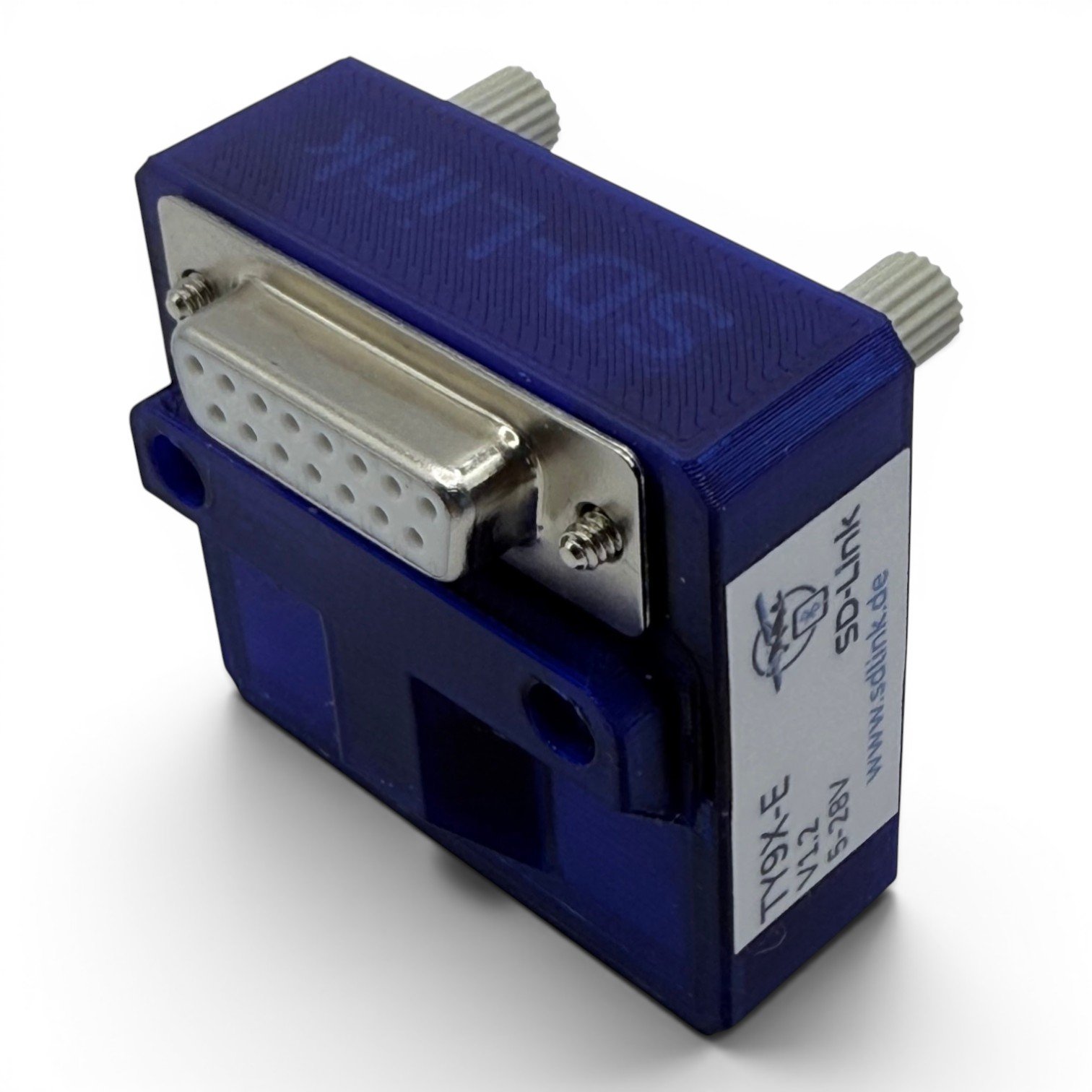

SD-Link TY9X-E – Image 2

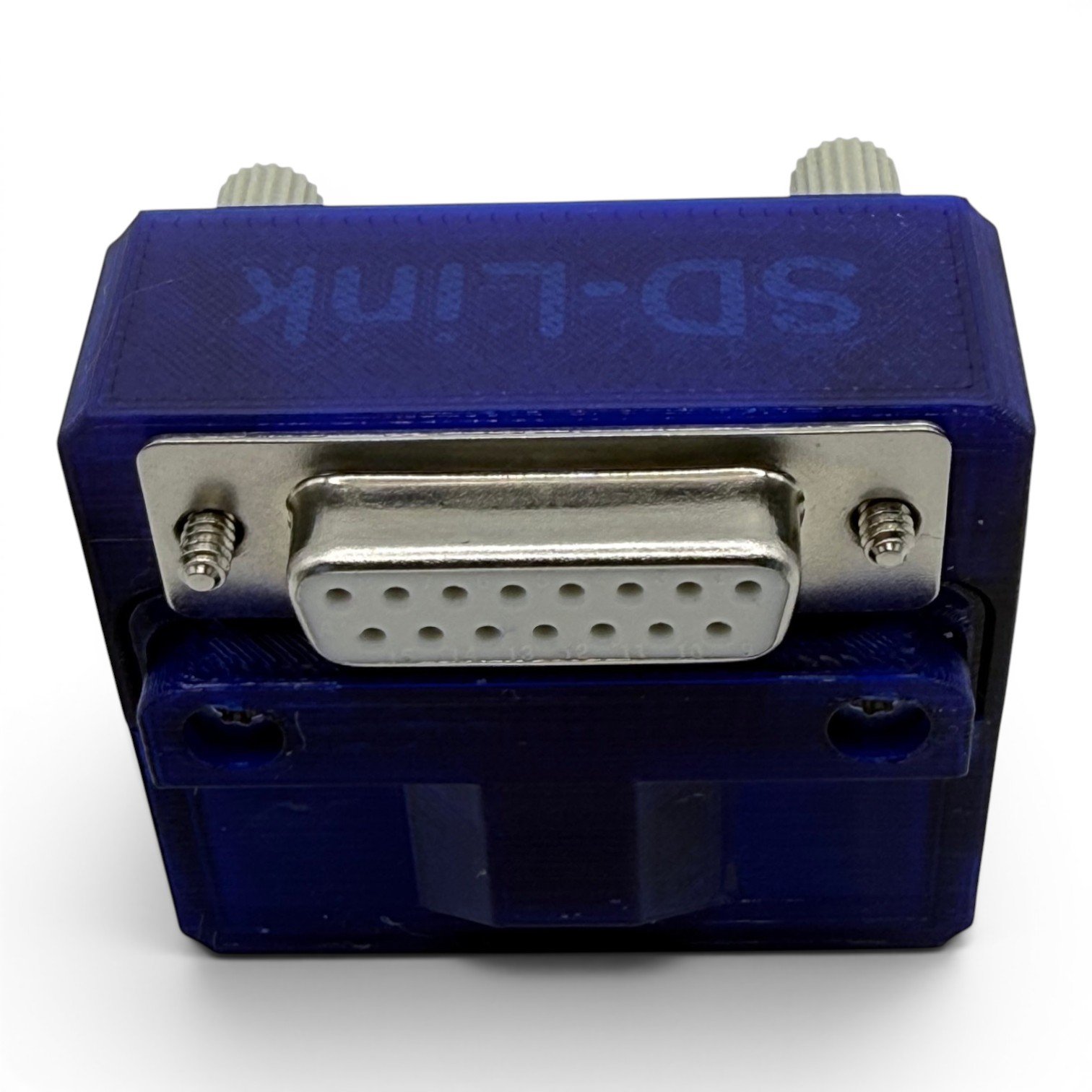

SD-Link TY9X-E – Image 3
SD-Link TY9X-EE Bluetooth adapter for Skydemon installed in the cockpit
Technical drawing of the SD-Link TY9X-E adapter with dimensions 48 x 45 x 22 mm

SD-Link TY9X-E

5,0 5 reviews

129,00 €

Including 19% VAT, plus shipping costs.

Bluetooth adapter (BLE) for TRIG TY91/TY92 VHF radios (TC90 control unit) — transmits frequencies from SkyDemon and Sky-Map, even with EFIS. Plug & Play, 12–24 V. For experimental use only.

Delivery time: Standard shipping (1–5 working days)

Plug & Play5-28 VBLE 5.024 months
Item number: SD-TY9X-E Categories: , Keywords , , , , , , , , , , , , , ,

Description

TRIG TY91/TY92 Bluetooth adapter for SkyDemon, Sky-Map and other navigation apps — SD-TY9X-E.

The SD-TY9X-E is a compact Bluetooth adapter that connects between the TC90 control unit and the Sub-D connector of a TRIG TY91/TY92 VHF transceiver without any additional wiring or mechanical modifications. You can then transmit standby and active frequencies directly from the app via Bluetooth Low Energy (BLE).

The adapter also works when an EFIS (Dynon, G3X etc.) is already connected to the radio — we call this feature Dual Source.

Good to know. In SkyDemon, select "Garmin GTR225 Compatible" as the radio type — there is no separate menu entry for the TRIG TY91/TY92. The adapter connects to the TC90 control unit, not to the radio module (25-pin connector).

Key Features

  • Compatibility: Designed for TRIG TC90 control panels, compatible with TY91 and TY92. Works with TC90 control panel firmware version 1.5 and higher. An existing EFIS (Dynon, G3X, etc.) can still be used.
  • Simple installation: The adapter is plugged in between the existing wiring and is held securely to the housing thanks to two Sub-D knurled screws.
  • Power supply: No additional power supply required; handles on-board voltages up to 28 V. An integrated fuse provides additional protection.
  • Requirements: Works on the 12V bus (TY91) and 24V bus (TY92).
  • Compact design: Dimensions 48 × 45 × 17 mm, Weight 50 gr.

Important note: This product is intended for experimental purposes only. Our page " Bluetooth adapters in aircraft: what is allowed?" explains what this means for UL, experimental, and certified aircraft.

Step-by-step instructions as a PDF — in your language, for every supported navigation app. Also included with your delivery.

All instructions & datasheets

Additional Information

Weight 0,05 kg
Size 4,8x4,5x1,7 cm
Input configuration

Standard configuration (single-source BLE), dual-source (optional second external RS232 source / EFIS possible)
Compatibility

TC90, TY91, TY92
Operating system

Android, iOS
installation type

Plug-and-Play
Integrated fuse

Ja
Reverse polarity protection

Ja
Certification

Experimental
Plug-in system

D-Sub Kurled Screw Lock
Initial configuration

Multidrop (supplying additional devices with received RS232 data)
Power Supply

12 V power supply, 24 V power supply

Product safety

Our adapters are experimental prototypes intended solely for use under test conditions. Installation and operation are the sole responsibility of the user; no type approval has been granted.

Before installation, please check compatibility with your radio and the permissible vehicle voltage. If you are unsure, contact us before installation.

Manufacturer / Distributor:
LayCom Vision GmbH – SD Link
Chausseestr. 46, D-15518 Rauen, Germany
Tel. +49 3361 710253 · info@sdlink.de
